Utility locating & mark-outs
Utility locating &
mark-outs

Nationwide utility locating and mark-out services

30-40% of underground utilities are undocumented or inaccurately recorded on as-built plans. Reveal’s locating services reduce your risk of a utility strike by showing you where the dangers lie.

Utility locating & mark-outs
Utility locating & mark-outs

Our Process

Investigation

We start by gathering utility records and using detection tools like GPR, EML, and chamber inspections to map known and unknown underground services.

Mark-out

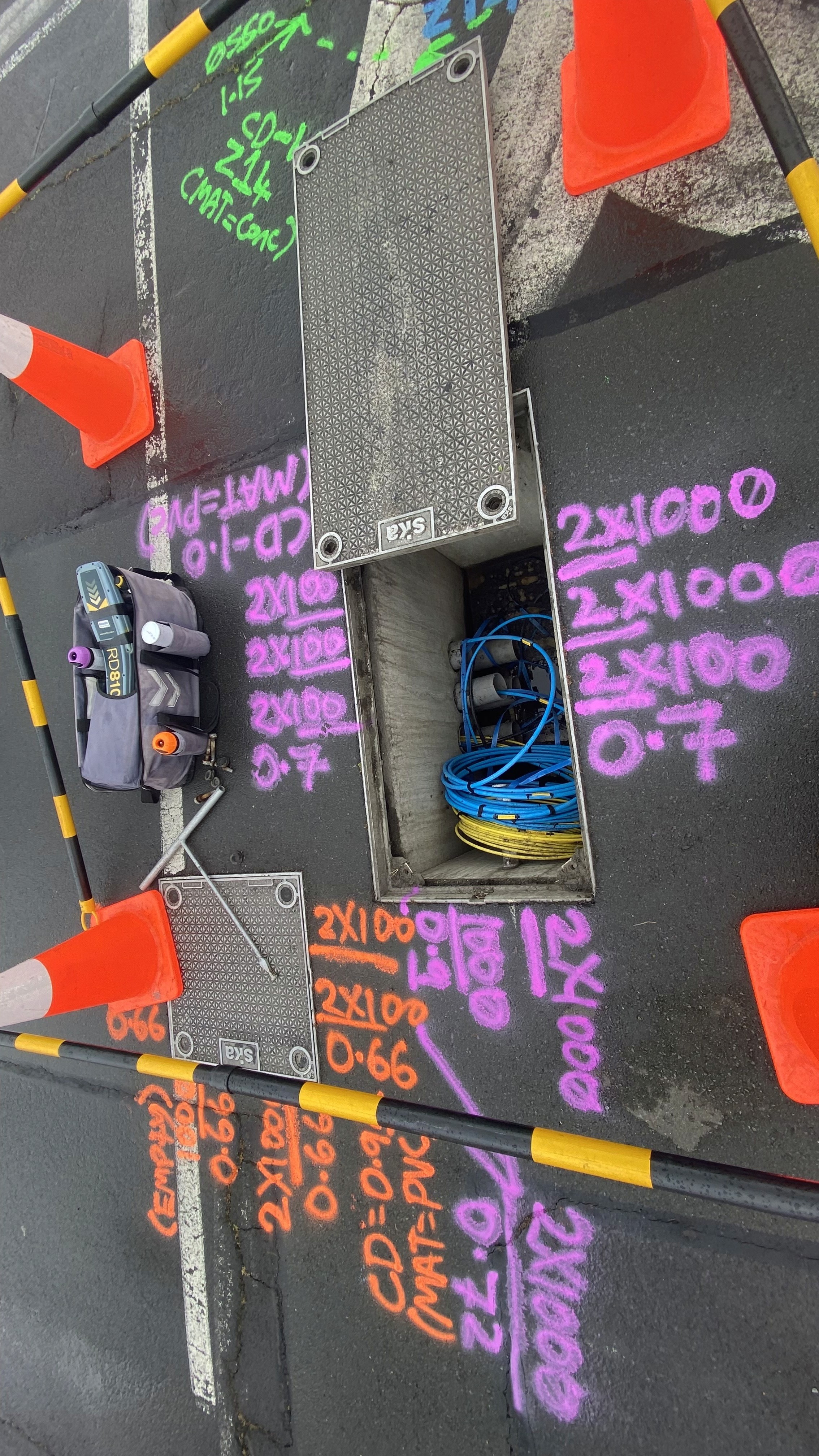

Utilities are marked on-site using paint, pegs, or chalk to indicate asset type, alignment, direction, and depth.

Report

You’ll get a clear, standards-aligned report with all detections, site notes, and ready-to-use files for design, planning, and records.

Need more from your data?

Need more from your data?

Reveal are also industry experts in Utility Surveying and Data Processing.

Utility locating & mark-outs
Utility locating & mark-outs

Our Tools

Reveal uses cutting-edge technology and skilled field technicians to collect the most precise utility data, including depth and dimensions.

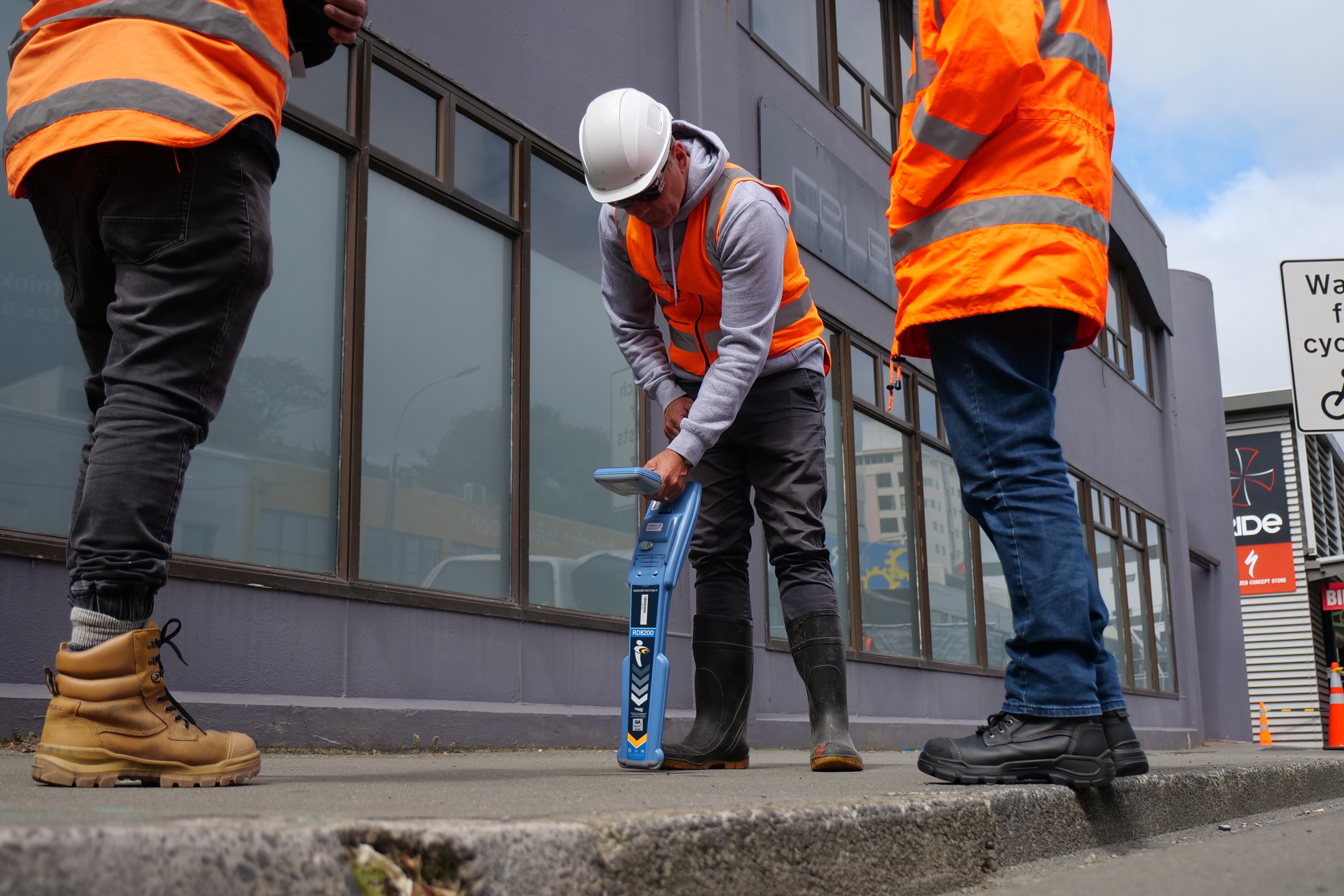

Electromagnetic Locator (EML)

EML is effective for locating metallic utilities such as communications and electric cables, as they produce a distinct electromagnetic signal.

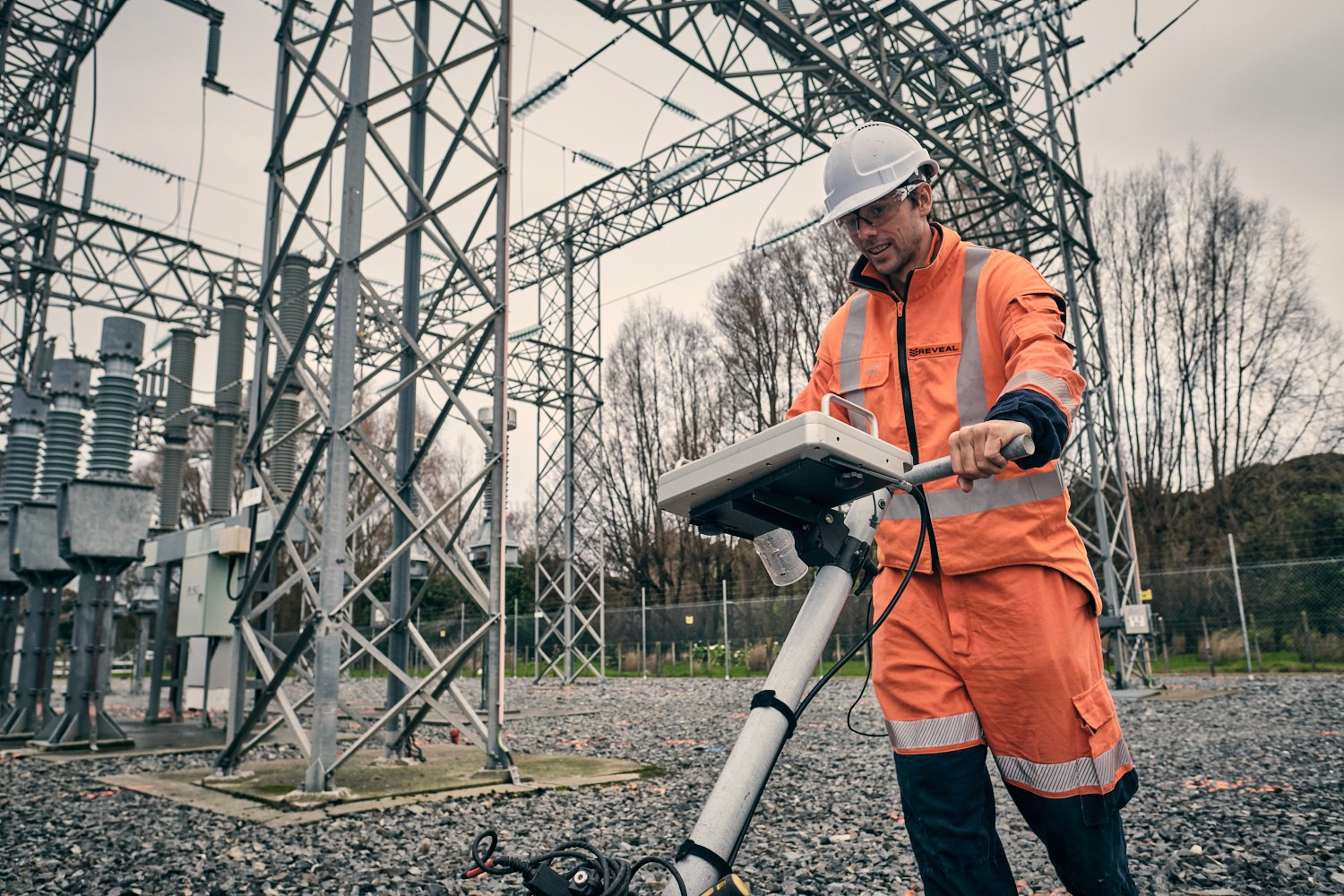

GPR on substation
GPR on substation
GPR on substation
GPR on substation

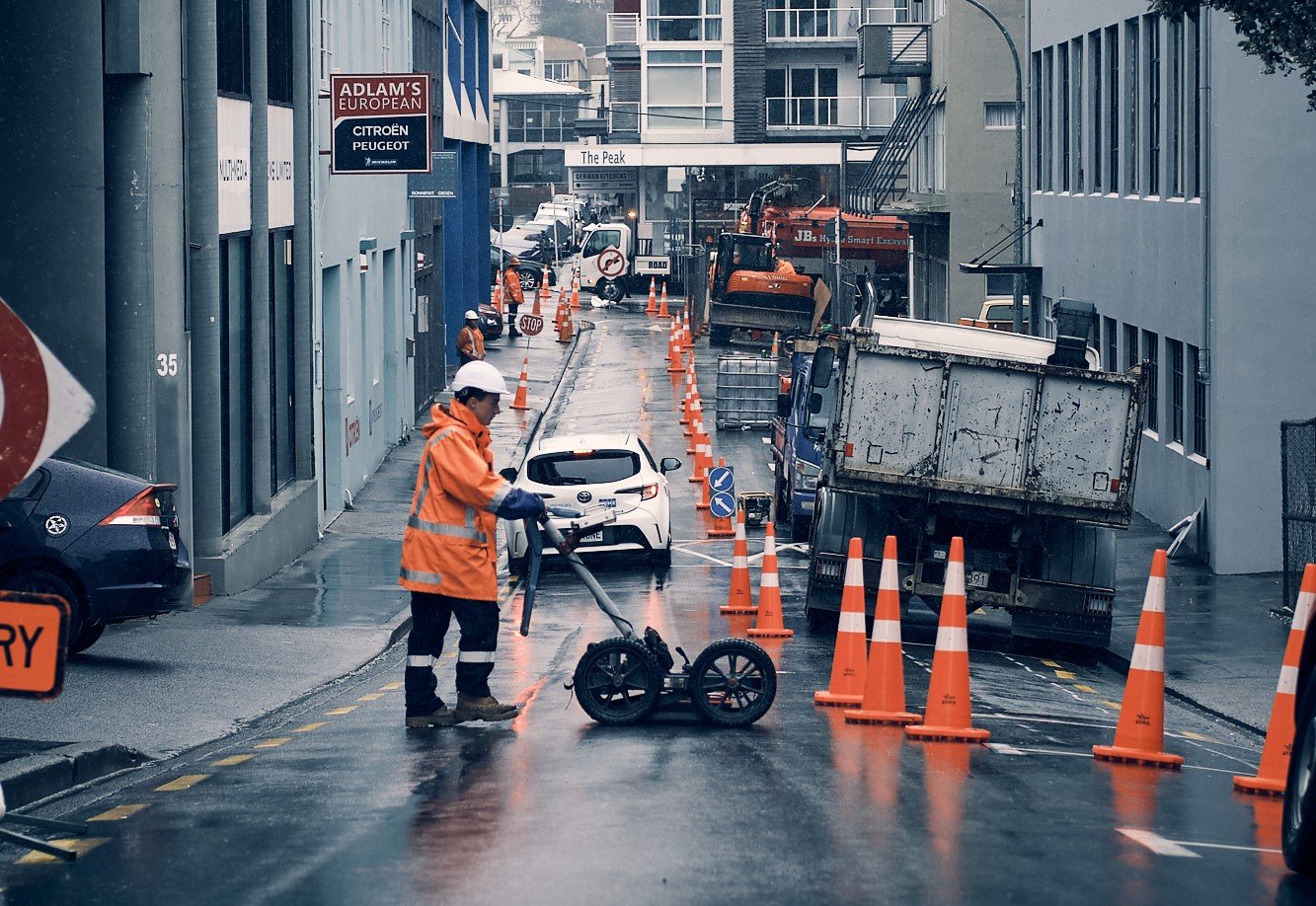

Ground-penetrating radar (GPR)

GPR can corroborate EML detections as well as detect changes in material properties, and can detect both metallic and non-metallic utilities. Suitable for urban centres and rural areas.

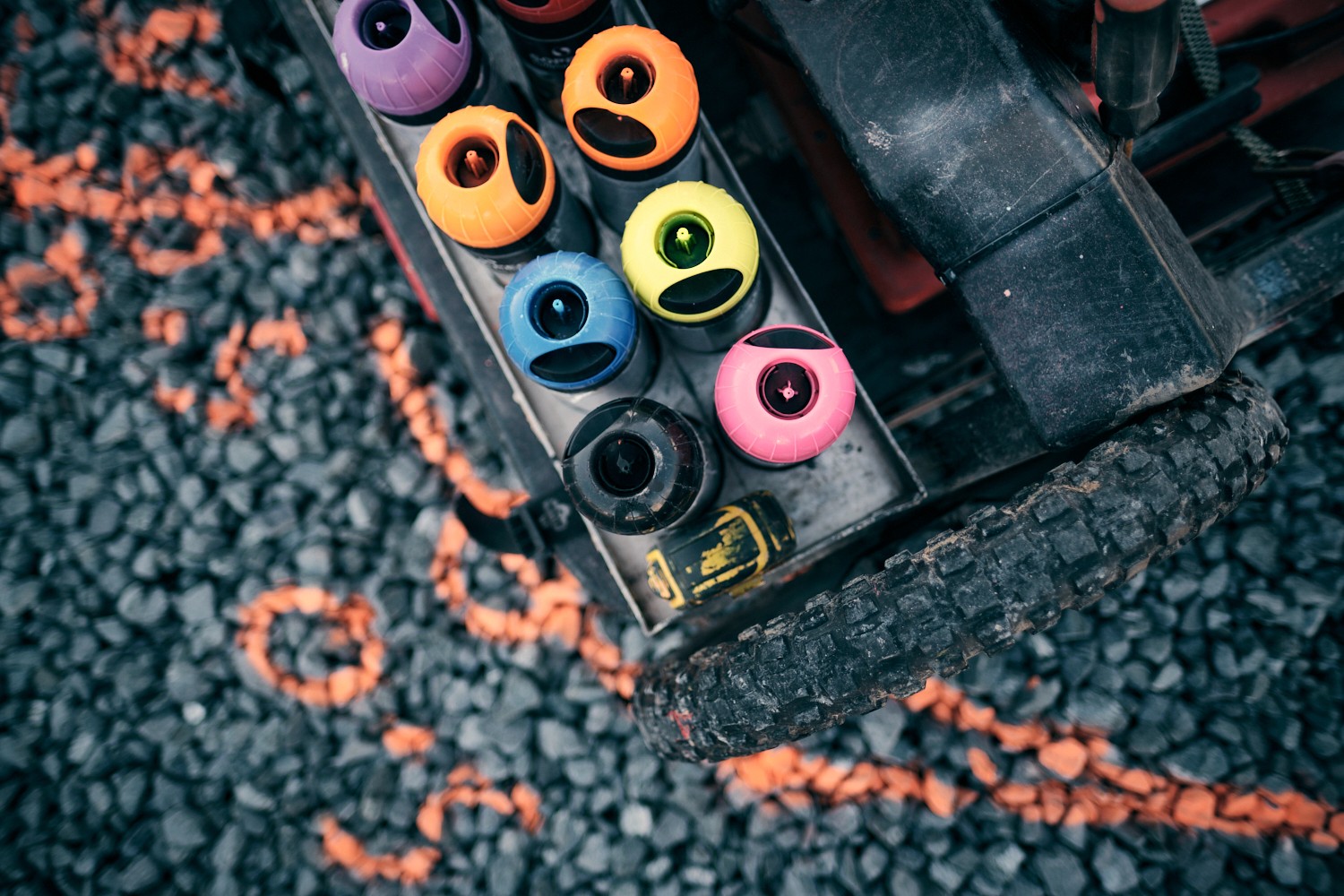

Paint

Utilities are marked out along the pavement using colour-coded non-toxic paint and chalk to distinguish the utility type, depth and direction of detected utilities.

Utility locating & Mark-outs

The Reveal Difference

Clear reporting

Every locate includes a detailed report with annotated maps, depths, and detection confidence levels. Designed to integrate with design and safety workflows, these reports help your team plan with clarity and reduce risk.

Interpreted by experts

It’s one thing to push a GPR — it’s another to know what it’s telling you. Every Reveal locate is interpreted by experienced specialists who understand how to read complex underground signals and turn them into reliable, actionable insights.

Dig with confidence

With accurate tools, skilled technicians and expert oversight, our locates give crews the confidence to break ground safely. Every mark-out is grounded in evidence, not guesswork.
